मूल जानकारी

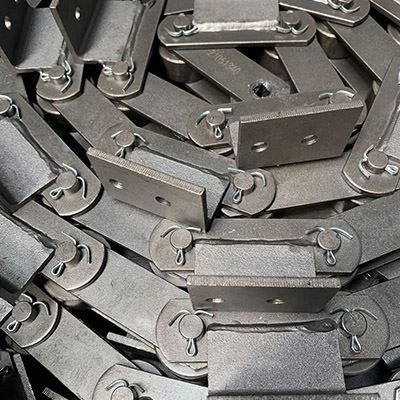

उत्पाद का नाम: एम श्रृंखला कन्वेयर श्रृंखला
उपयोग करें: संचरण श्रृंखला
सामग्री: मिश्र धातु / कार्बन स्टील
रंग: ठोस रंग
परिवहन पैकेजिंग: निर्यात पैकेज
विनिर्देशन: ISO9001
ट्रेडमार्क: DONGHUA
श्रृंखला नहीं: M18f1-P-50 M22-P-50 M22f1-P-50 ......
पिच:40 50 60 ....
संरचना (श्रृंखला के लिए): रोलर चेन
व्यापार जानकारी
एफओबी मूल्य: बातचीत कर सकते हैं
न्यूनतम आदेश मात्रा:50M
बंदरगाह: शंघाई
उत्पादन: 5000m
सीमा शुल्क कोड: 73151190
KINS: 1) रोलर्स के बिना 2) एस छोटे रोलर्स प्रकार 3 के साथ) पी बड़े रोलर्स प्रकार 4 के साथ) Flanged रोलर्स प्रकार 5 के साथ वेल्डेड पिन प्लेटों के साथ ISO (DIN) मानक श्रृंखला नहीं.
|
|
|
|
|
डोंगहुआ श्रृंखला सं। |
पिच (मिमी) |
रोलर व्यास (मिमी) |
आंतरिक प्लेटों के बीच चौड़ाई (मिमी) |
पिन व्यास (मिमी) |
पिन लंबाई (मिमी) |
आंतरिक प्लेट गहराई (मिमी) |
प्लेट thichness (मिमी) |
अंतिम तन्यता शक्ति (kN/ |
औसत तन्यता शक्ति (kN) |
प्रति मीटर वजन (kg/m) |
|
|
L |
LC |
||||||||||
|
M18F1-P-50 |
50.00 |
25.00 |
11.50 |
5.72 |
26.0 |
28.2 |
18.0 |
2.5 |
18.0/4050 |
20.0 |
1.81 |
|
M22-P-50 |
50.00 |
25.00 |
11.50 |
8.00 |
28.0 |
30.9 |
20.0 |
3.0 |
22.0/4950 |
24.2 |
2.64 |
|
M22F1-P-50 |
50.00 |
25.00 |
12.00 |
10.00 |
29.4 |
32.6 |
20.0 |
3.0 |
22.0/4950 |
24.2 |
2.30 |
|
M35F2-S-35 |
35.00 |
14.00 |
14.00 |
7.00 |
31.0 |
34.0 |
18.0 |
3.5/2.5 |
35.0/7874 |
39.0 |
1.82 |
|
M35F2-P-35 |
35.00 |
22.00 |
14.00 |
7.00 |
31.0 |
34.0 |
18.0 |
3.5/2.5 |
35.0/7874 |
39.0 |
2.47 |
|
* M35F3-B-35 |
35.00 |
14.00 |
14.00 |
6.00 |
30.2 |
33.0 |
18.0 |
3.0 |
35.0/7874 |
39.0 |
1.73 |
|
M35F11-P-35 |
35.00 |
20.00 |
16.00 |
7.00 |
31.0 |
34.0 |
18.0 |
2.5 |
35.0/7874 |
39.0 |
2.22 |
|
M35F4-C-69 |
69.00 |
25.00 |
12.00 |
7.00 |
27.5 |
30.0 |
19.0 |
2.5 |
35.0/7874 |
39.0 |
1.60 |
|
M35F5-P-50.8 |
50.80 |
25.00 |
16.00 |
7.00 |
33.0 |
36.0 |
20.0 |
3.0 |
35.0/7874 |
39.0 |
2.48 |
|
M40F17-P-50.8 |
50.80 |
31.00 |
15.20 |
13.35 |
38.0 |
42.8 |
25.0 |
5.0/4.0 |
53.9/12127 |
59.2 |
4.45 |
|
M40-PF1-100 |
100.00 |
36.00 |
20.00 |
8.50 |
40.5 |
44.5 |
25.0 |
3.5 |
40.0/9000 |
44.0 |
3.28 |
|
M40F4-P-50 |
50.00 |
31.75 |
15.00 |
10.00 |
36.6 |
39.0 |
25.0 |
4.0 |
40.0/9000 |
44.0 |
4.00 |
|
M28F4-S-50 |
50.00 |
15.00 |
17.00 |
7.00 |
33.0 |
36.5 |
20.0 |
3.0 |
28.0/6300 |
35.0 |
1.88 |
|
M35F10-P-50 |
50.00 |
20.00 |
16.00 |
7.00 |
33.0 |
36.0 |
25.0 |
3.0 |
35.0/7874 |
39.0 |
2.53 |
|
M35F9-P-50 |
50.00 |
25.00 |
16.00 |
6.00 |
30.4 |
32.7 |
18.0 |
2.5 |
33.0/7425 |
36.0 |
2.23 |
|
M20-PF1-50 |
50.00 |
30.00 |
16.00 |
6.00 |
31.0 |
33.5 |
18.0 |
2.5 |
20.0/4500 |
22.0 |
2.60 |
|
M40F5-S-65 |
65.00 |
24.00 |
15.00 |
10.00 |
36.6 |
39.0 |
30.0 |
4.0 |
40.0/9000 |
44.0 |
4.86 |
|
M40F6-P-80 |
80.00 |
36.00 |
20.00 |
8.50 |
41.0 |
44.2 |
25.0 |
4.0 |
40.0/9000 |
44.0 |
3.68 |
|
M56F14-S-63 |
63.00 |
21.00 |
24.00 |
10.00 |
46.0 |
49.5 |
30.0 |
4.0 |
56.0/12600 |
61.6 |
3.81 |
|
M28F5-P-63 |
63.00 |
30.00 |
18.00 |
7.00 |
42.0 |
45.5 |
5.0 |
5.0 |
40.0/9000 |
50.0 |
4.23 |
|
M56F14-S-80 |
80.00 |
21.00 |
24.00 |
10.00 |
46.0 |
49.5 |
30.0 |
4.0 |
56.0/12600 |
61.6 |
3.27 |
|
M80F8-S-80 |
80.00 |
25.00 |
28.00 |
12.00 |
55.0 |
58.5 |
35.0 |
5.0 |
80.0/18000 |
88.0 |
5.11 |
|
M80F9-S-80 |
80.00 |
25.00 |
28.00 |
12.00 |
54.5 |
59.0 |
35.0 |
5.0 |
80.0/18000 |
88.0 |
5.07 |
|
M56F14-P-100 |
100.00 |
42.00 |
24.00 |
10.00 |
46.0 |
49.5 |
30.0 |
4.0 |
56.0/12600 |
61.6 |
5.00 |
|
M75-P-75 |
75.00 |
40.00 |
22.00 |
12.00 |
44.0 |
47.0 |
35.0 |
4.0 |
75.0/16870 |
75.0 |
5.88 |
|
M80F3-P-125 |
125.00 |
50.00 |
28.00 |
11.00 |
55.0 |
58.5 |
35.0 |
5.0 |
80.0/18000 |
88.0 |
6.72 |
|
M80F4-A-100 |
100.00 |
25.00 |
28.00 |
12.00 |
55.0 |
58.5 |
35.0 |
5.0 |
80.0/18000 |
88.0 |
4.63 |
|
M80F6-P-75 |
75.00 |
35.00 |
14.00 |
12.00 |
40.5 |
45.0 |
30.0 |
5.0 |
80.0/18000 |
88.0 |
4.80 |
|
* M80F8-B-100 |
100.00 |
18.00 |
28.00 |
12.00 |
55.0 |
58.5 |
35.0 |
5.0 |
80.0/18000 |
88.0 |
4.14 |
|
* M80F8-B-80 |
80.00 |
18.00 |
28.00 |
12.00 |
55.0 |
58.5 |
35.0 |
5.0 |
80.0/18000 |
88.0 |
4.48 |
|
M100-P-80 |
80.00 |
47.50 |
31.40 |
15.90 |
71.2 |
76.0 |
40.0 |
8.0 |
100.0/22727 |
110.0 |
12.36 |
|
M112F2-P-125 |
125.00 |
55.00 |
50.00 |
16.00 |
87.1 |
91.6 |
40.0 |
7.2 |
112.0/25200 |
123.2 |
13.35 |
|
* M112F6-B-100 |
100.00 |
21.00 |
32.00 |
15.00 |
64.0 |
68.3 |
40.0 |
6.0 |
112.0/25200 |
123.2 |
6.14 |
|
* M112F6-B-125 |
125.00 |
21.00 |
32.00 |
15.00 |
64.0 |
68.3 |
40.0 |
6.0 |
112.0/25200 |
123.2 |
5.46 |
|
M112F6-P-125 |
125.00 |
60.00 |
32.00 |
15.00 |
64.0 |
68.3 |
40.0 |
6.0 |
112.0/25200 |
123.2 |
10.33 |
|
M112F7-P-125 |
125.00 |
30.00 |
32.00 |
15.00 |
64.0 |
68.3 |
40.0 |
6.0 |
112.0/25200 |
123.2 |
6.39 |
|
* M80F4-B-125 |
125.00 |
18.00 |
28.00 |
12.00 |
55.0 |
58.5 |
35.0 |
5.0 |
80.0/18000 |
88.0 |
3.85 |
|
* M80F8-B-125 |
125.00 |
18.00 |
28.00 |
12.00 |
55.0 |
58.5 |
35.0 |
5.0 |
80.0/18000 |
88.0 |
3.85 |
|
M112F8-S-100 |
100.00 |
30.00 |
31.00 |
15.00 |
63.5 |
68.0 |
40.0 |
6.0 |
112.0/25200 |
123.2 |
7.14 |
|
M160F1-P-100 |
100.00 |
36.00 |
36.00 |
18.00 |
76.0 |
80.0 |
40.0 |
7.0 |
160./36364 |
176.0 |
9.42 |
|
M56F21-P-100 |
100.00 |
42.00 |
24.00 |
12.00 |
54.7 |
59.5 |
30.0 |
6.0 |
56.0/12600 |
61.6 |
6.30 |
|
M80F12-P-100 |
100.00 |
50.00 |
28.00 |
12.00 |
55.0 |
58.5 |
35.0 |
5.0 |
80.0/18000 |
88.0 |
7.80 |
|
* M80F4-B-100 |
100.00 |
18.00 |
28.00 |
12.00 |
55.0 |
58.5 |
35.0 |
5.0 |
80.0/18000 |
88.0 |
4.13 |
|
* M112F15-B-100 |
100.00 |
21.00 |
31.00 |
15.00 |
64.5 |
69.0 |
40.0 |
6.0 |
112.0/25200 |
123.2 |
5.90 |
|
* M160F15-B-100 |
100.00 |
25.00 |
37.00 |
18.00 |
85.3 |
91.5 |
50.0 |
10.0 |
160.0/36364 |
176.0 |
12.51 |
|
* M160F14-B-100 |
100.00 |
25.00 |
37.00 |
18.00 |
77.3 |
83.5 |
50.0 |
8.0 |
160.0/36364 |
176.0 |
10.44 |
|
M224F3-P-160 |
160.00 |
80.00 |
30.00 |
21.00 |
81.0 |
- |
60.0 |
8.0 |
224.0/50909 |
246.0 |
17.34 |
|
* M315F6-B-160 |
160.00 |
42.00 |
80.00 |
25.00 |
140.0 |
140.0 |
80.0 |
12.0 |
315.0/70862 |
346.5 |
27.30 |
|
M112F14 |
160.00 |
21.00 |
31.00 |
14.00 |
64.4 |
69.0 |
40.0 |
6.0 |
112.0/25200 |
123.2 |
5.03 |
|
* M315F17-B-160 |
160.00 |
36.00 |
66.70 |
25.00 |
93.5 |
100.5 |
70.0 |
8.0 |
315.0/70862 |
346.5 |
15.04 |
|
M315F12-S-200 |
200.00 |
45.00 |
48.00 |
25.00 |
119.0 |
126.5 |
70.0 |
15.0 |
600.0/135000 |
648.0 |
24.20 |
|
M315F10-S-250 |
250.00 |
50.00 |
55.00 |
26.00 |
106.9 |
113.0 |
70.0 |
10.0 |
315.0/70862 |
393.7 |
17.60 |
|
M315F16-S-250 |
250.00 |
60.00 |
48.00 |
25.00 |
109.5 |
117.0 |
70.0 |
12.0 |
600.0/135000 |
648.0 |
21.60 |
|
* बुशिंग श्रृंखला: तालिका में डी 1 बुशिंग के बाहरी व्यास को इंगित करता है। |
|
||||||||||
|
|
